Designed for streamlined delivery.

Our environmental- and temperature-controlled facility assures stability in production and results, allowing us to produce to the highest tolerances. Our facility is also laid out to maximize flow, assuring quality and safety.

Request A Quote

Primary Machining Services

  • CNC Swiss Machining
  • 3.4.5 Axis CNC Milling
  • High Speed Milling
  • Wire EDM
  • CNC Turning
  • Gun Drilling
  • Laser Marking
  • General Machining

Secondary Services

  • Full Finishing Department
  • Assembly Services
  • Passivation
  • Electropolishing
  • Heat Treating Services
  • Anodizing

Value-Added Services

  • Manufacturing Engineering Support
  • Design for Manufacturing Expertise
  • Product Assembly
  • Project Management

Quality / Metrology

Our processes comply to a higher-level standard because of our registration to ISO 13485. All of our process are validated and all of our equipment is continually checked for calibration.

  • ISO 13485
  • ITAR Registered
  • FDA Registered
  • 21CFR820 Compliant

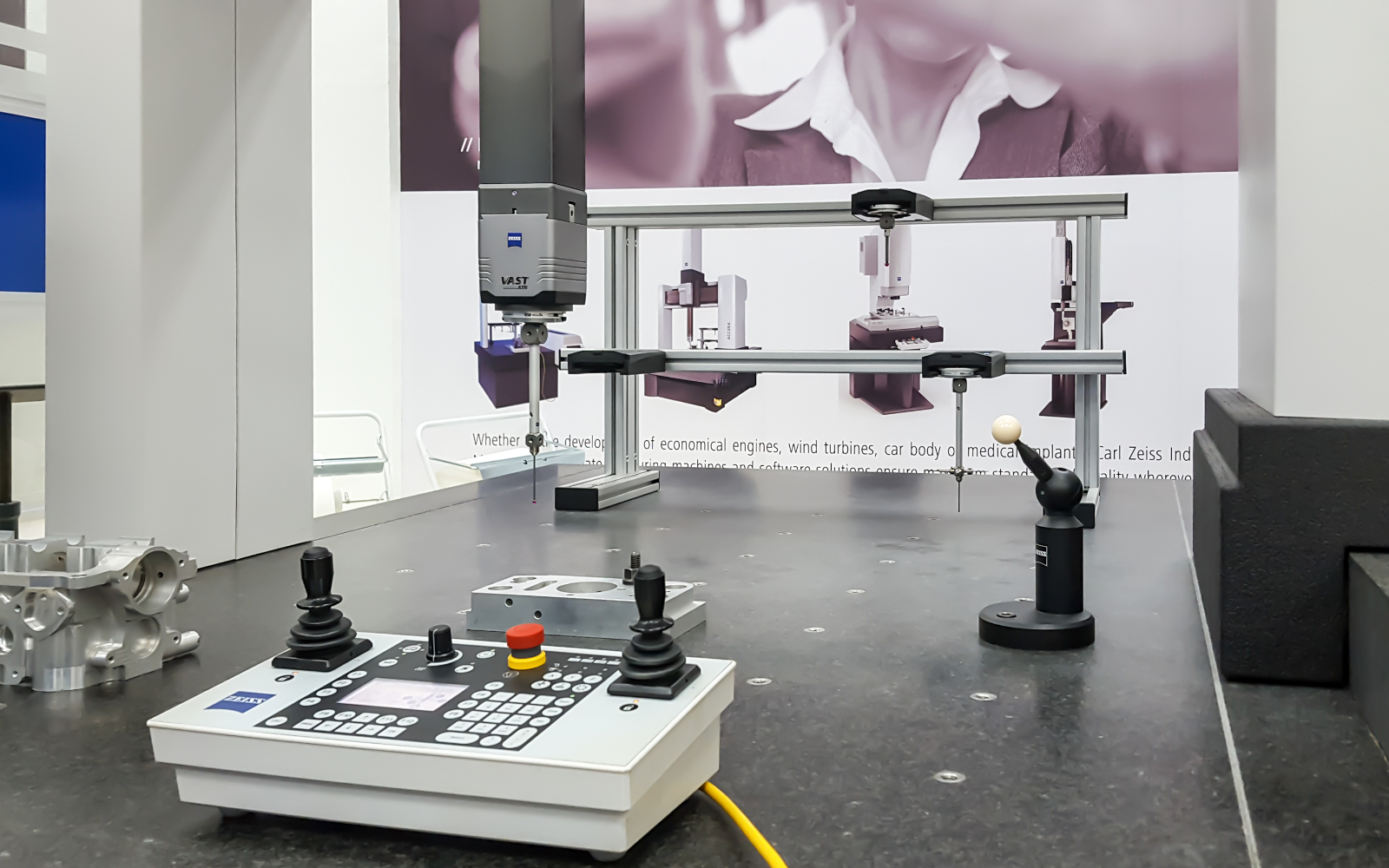

  • Zeiss CMM and Vision Inspection Systems

Machinery

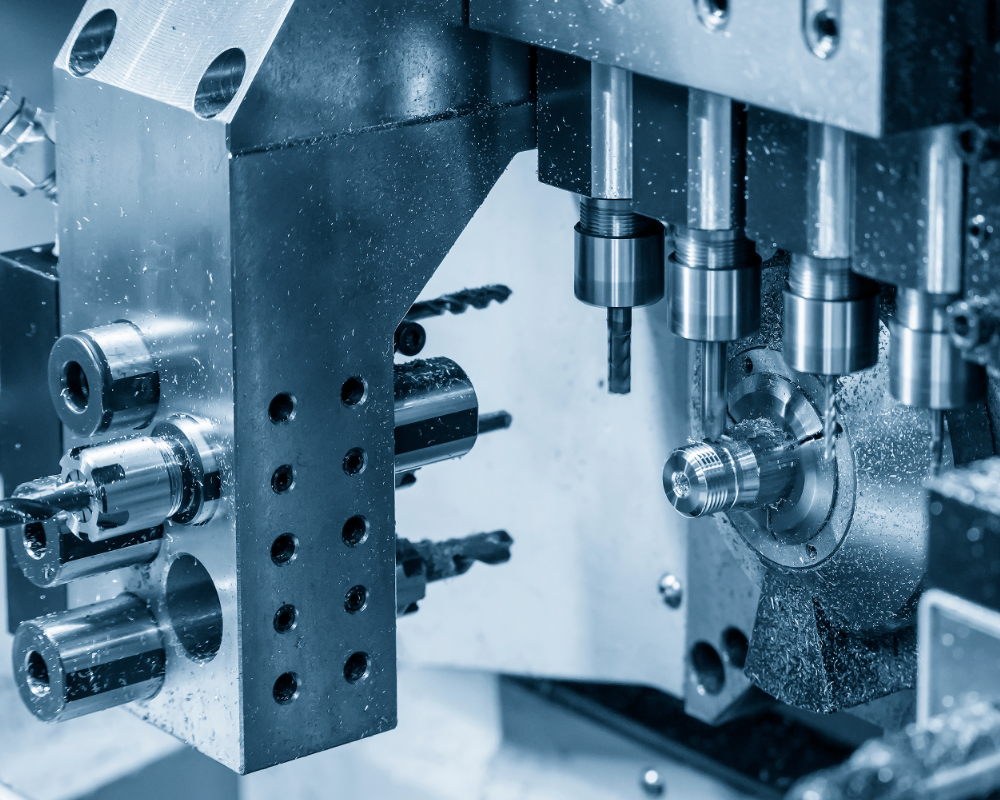

Citizen Swiss Turning Centers

Troy Innovative has 14 Citizen Swiss Turning Centers. Many of our Swiss machines have been retrofitted with electric spindles capable of 80,000 RPM. These spindle speeds are needed for micro drills and end mills – profile milling, small corner radius and small cannulation. All machines have high pressure pumps as to maximize chip evacuation; minimizing galling and improving surface finish.

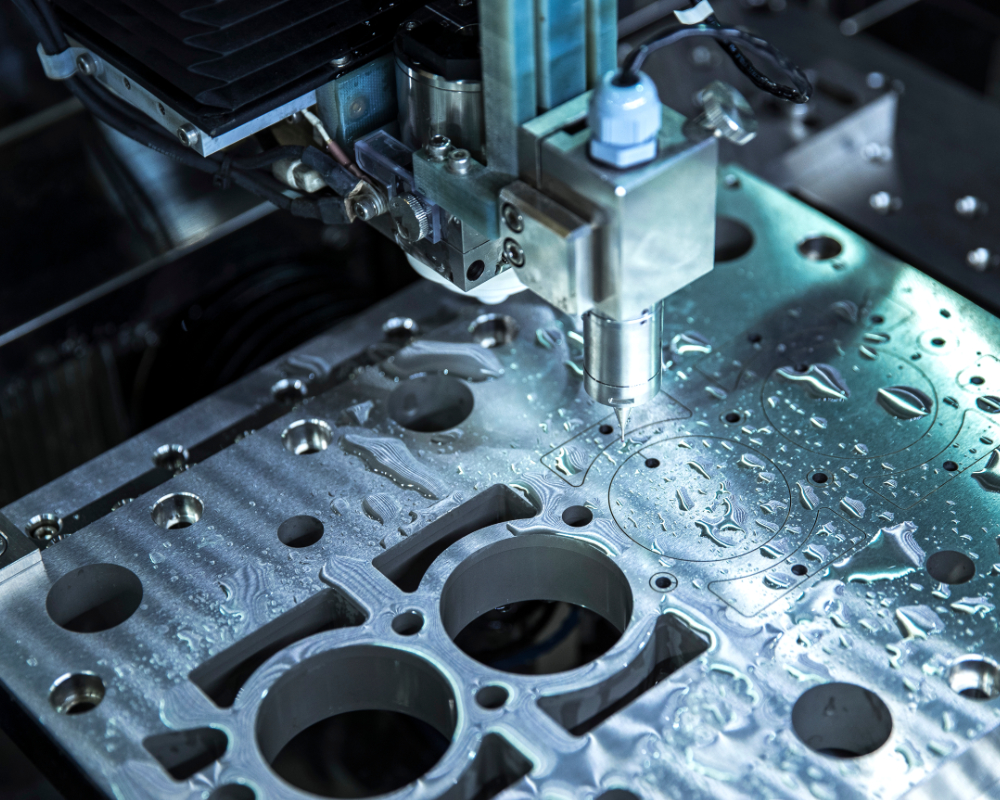

Fanuc C400ia-MED 10” Wire EDM

Designed especially for the medical, aerospace, and production industries. The c400iA-Med offers an extremely rigid thermally insulated base which is designed for high cutting speeds and exceptional machine reliability.

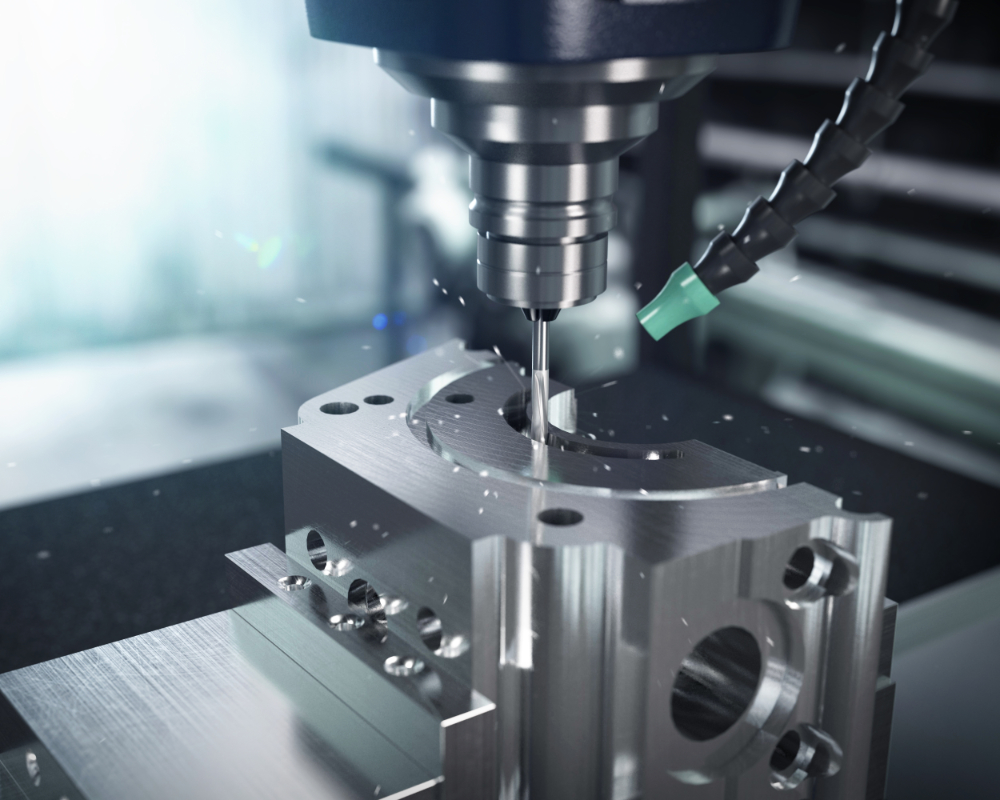

Haas Vertical Machining Centers

Troy Innovative has 3 Haas Vertical Machining centers; 2 high speed/ 30,000 rpm with 4th axis rotary. Milling is supported with a dedicated tool room and machinists for fixture building and tool holding requirements.

Eldorado Gun Drill Capabilities:

  • Cannulated implants and Instruments
  • Diameter of .060” to .750”
  • .001” per foot runout
  • Concentricity of .001 per inch

Trumpf Laser Marking System

The fiber laser based Tru Mark Series 5000 is characterized by an ideal combination of high power, high repetition rates and variably definable pulse duration. Designed for tough applications with high power requirements and short cycle times to meet all our customer requirements.
